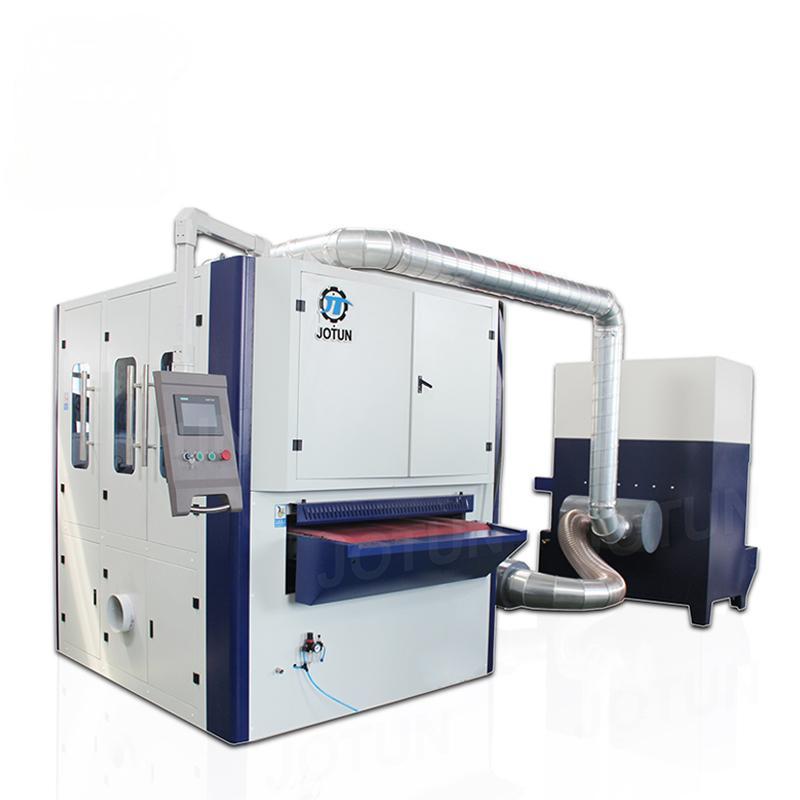

Sheet metal deburring machine

Grinding for laser cutting parts
Remove oxide scale, oxide layer,slag removal.
This metal deburring machine widely used for burrs of flat sheet plate after laser cutting.
Double belt structure
 PLC automatic controller

Technical parameter:

  • Sheet thickness:≥1mm
  • Width optional:600,800,1000,1300,1500,1600
  • Grinding height:1-80mm
  • Grinding motor:7.5kw/11kw/15kw
  • Working speed is adjustable

What metal surface result deburring machine can get?

Max deburring width:600mm,800mm,1000mm,1300mm,1500mm,1600mm
• Grinding sheet thickness:0.5-80mm
• Belt grinding motor:7.5kw ;
• Brush grinding motor:5.5kw;
• Conveyor motor:1.5kw;
• Lift motor:0.37kw
• Adsorption optional: Vacuum ,Magnetic
• Controller:PLC


What industry deburring machine will be used?

Deburring machine is solution for metal parts surface finishing,
Application for laser cut,punch cut,water jet cut,plasma cut,flame cut.
metal fabrication,sheet metalling industry.


What deburring machine can do?

Metal surface deburrs removal,edge rounding,polishing,scratch removal.
polishing,hairline polishing,rust removal,oxide layer removal.
Widely used for stainless steel,aluminum,iron,steel,copper surface finishing jobs.
  • Abrasive belt
     Sanding belts for deburring of sheet burrs after laser cut

  • Rotary brush
     Universal brush roller is for edge rounding  to R 0.8mm

  • Hammer head-large slag
     Special tools for carbon steel large slag.

  • Polishing wheel-hairline
     For  hairline polishing surface purpose.
