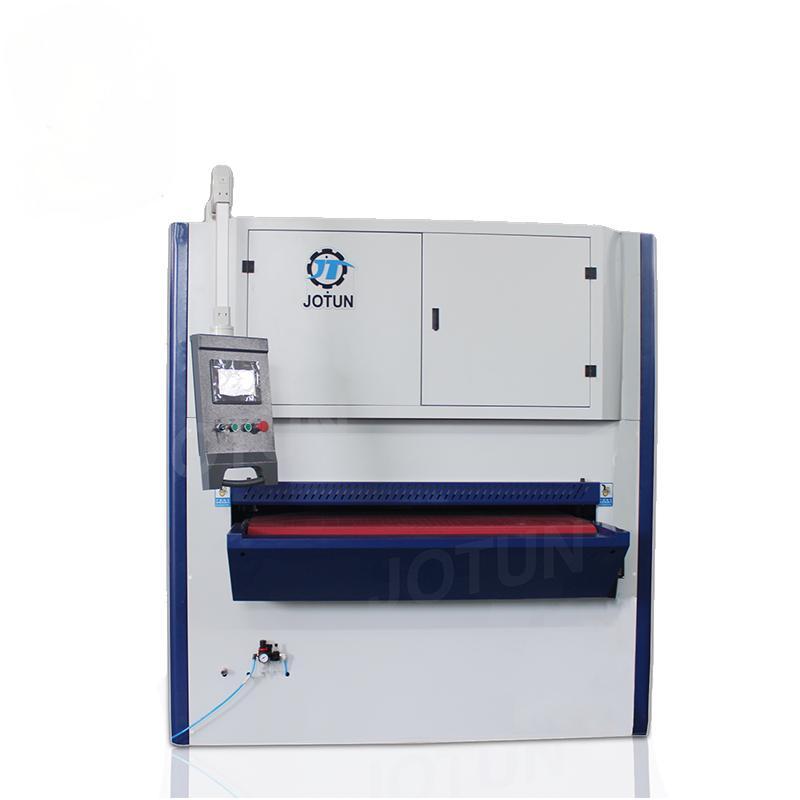

Edge Rounding Deburring Machine

1600mm wide metal deburring machine
This sheet metal edge deburring Machine with belt and brush roller.

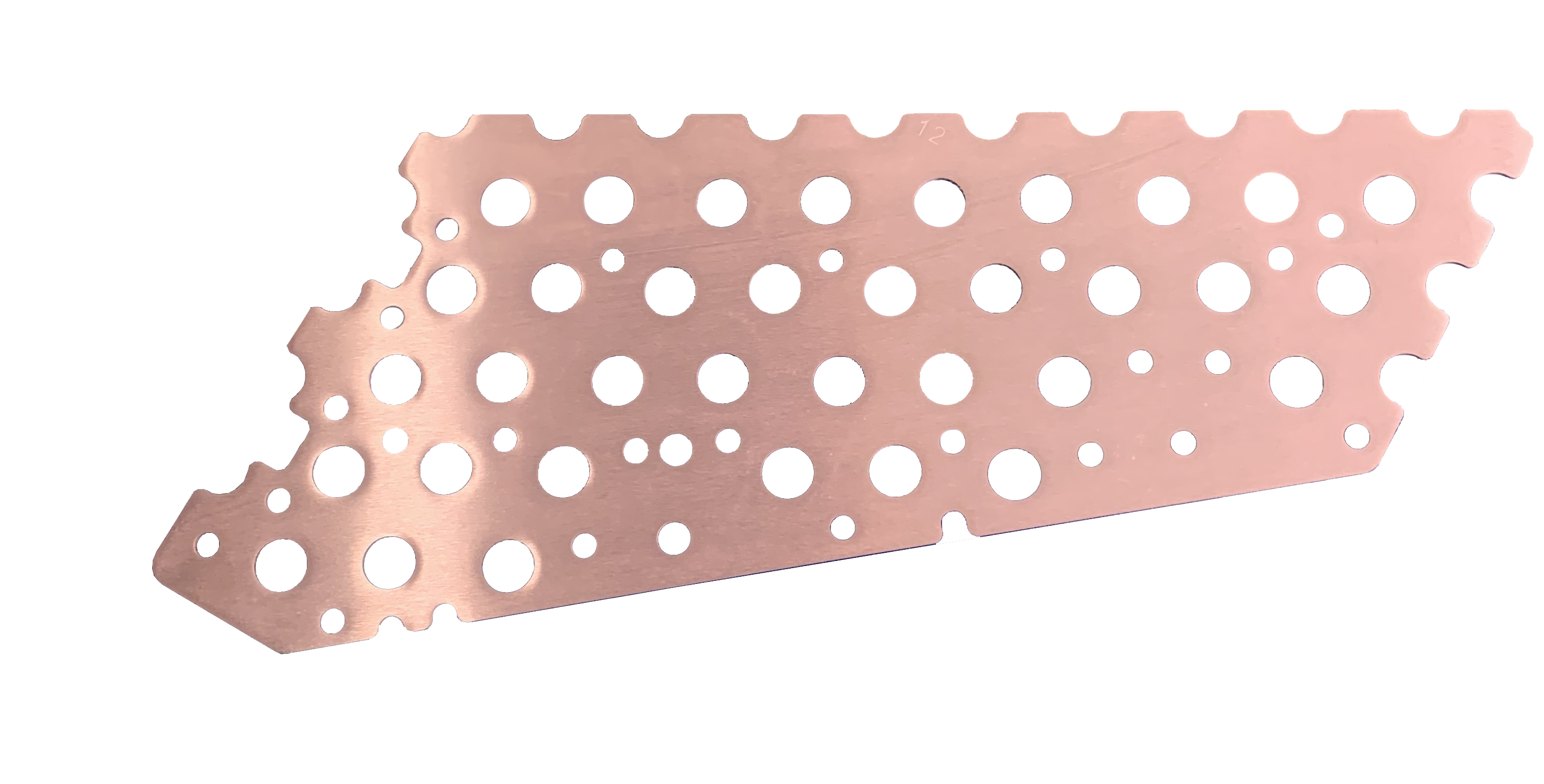

Grinding for laser cutting parts,punching parts,Plasma cutting parts,
Remove oxide scale, oxide layer,
Controlled by PLC.
Function:
  • sheet metal edge rounding
  • deburring metal edges
  • edge deburring
  • edge rounding

Technical parameter:

  • Sheet thickness:≥1mm
  • Width optional:600,800,1000,1300,1500,1600
  • Grinding height:1-80mm
  • Grinding motor:7.5kw/11kw/15kw
Max deburring width:600mm,800mm,1000mm,1300mm,1500mm,1600mm
• Grinding sheet thickness:0.5-80mm
• Belt grinding motor:7.5kw ;
• Brush grinding motor:5.5kw;
• Conveyor motor:1.5kw;
• Lift motor:0.37kw
• Adsorption optional: Vacuum ,Magnetic
• Controller:PLC


What industry deburring machine will be used?

Deburring machine is solution for metal parts surface finishing,
Application for laser cut,punch cut,water jet cut,plasma cut,flame cut.
metal fabrication,sheet metalling industry.


What deburring machine can do?

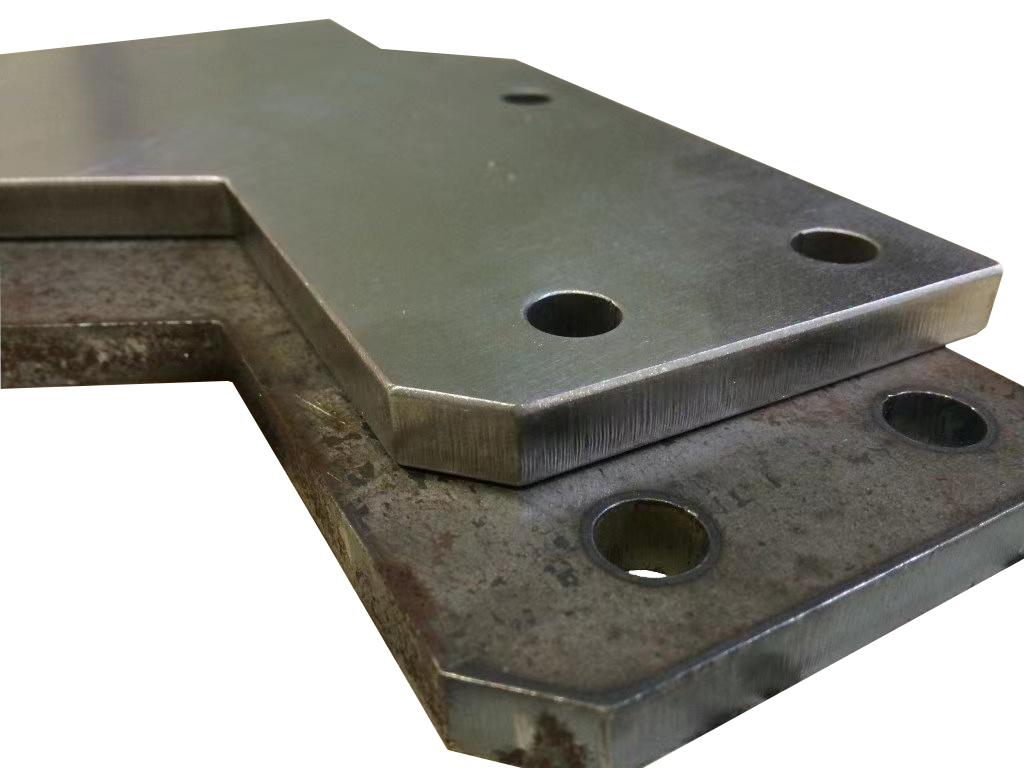

Metal surface deburrs removal,edge rounding,polishing,scratch removal.
polishing,hairline polishing,rust removal,oxide layer removal.
Widely used for stainless steel,aluminum,iron,steel,copper surface finishing jobs.
  • Abrasive belt
     Sanding belts for deburring of sheet burrs after laser cut

  • Rotary brush
     Universal brush roller is for edge rounding  to R 0.8mm

  • Hammer head-large slag
     Special tools for carbon steel large slag.

  • Polishing wheel-hairline
     For  hairline polishing surface purpose.
