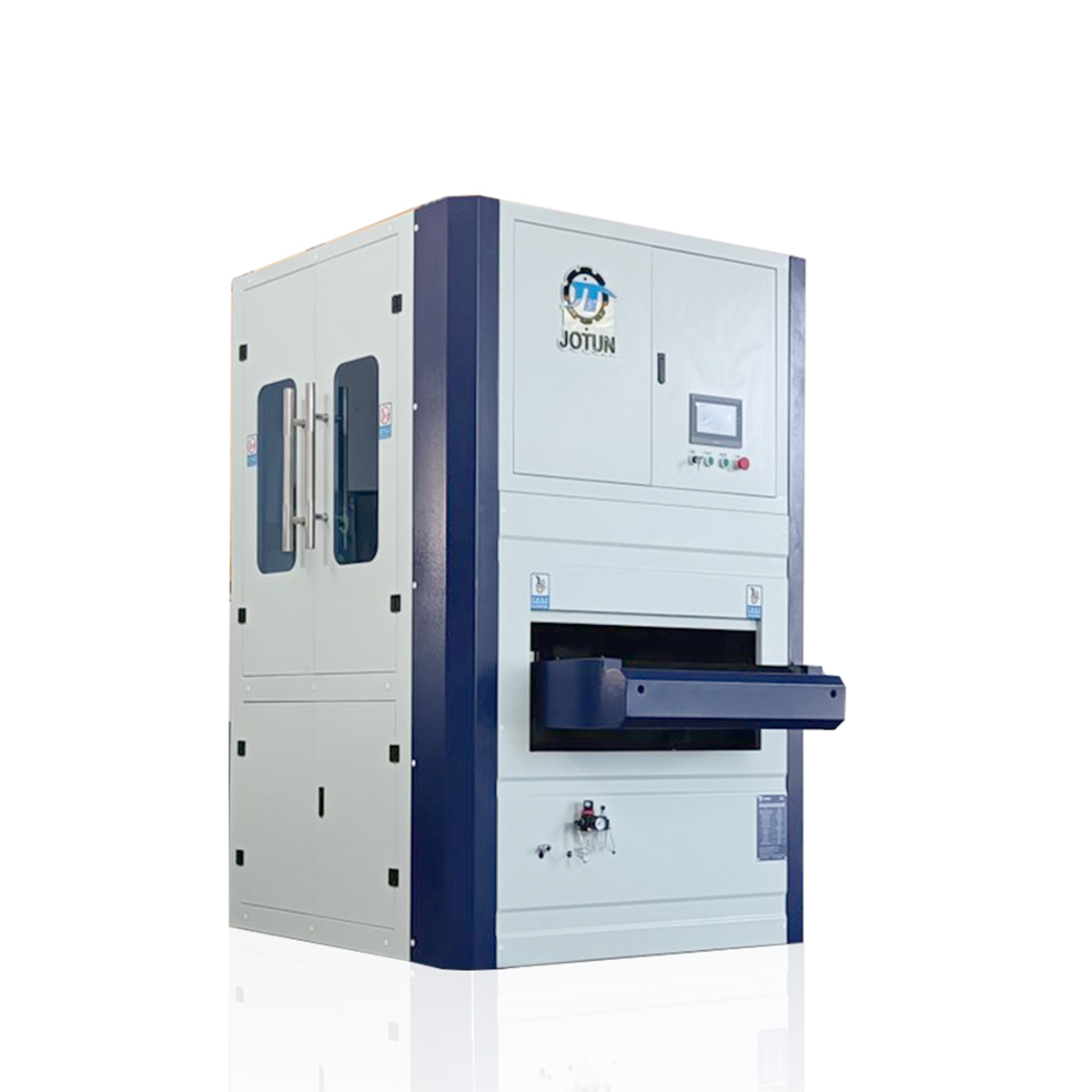

Small parts deburring machine

Function: sheet metal surfacehairline,grinding,polishing ,remove edge deburrs

Structure: belt+hairline brush

  • This machine is with one belt deburring and hairline brush, it is suitable for carbon steel plate, stainless steel plate, copper plate,aluminum plate etc.,
  • adjust the corresponding grinding parameters and select the appropriate abrasive according to the different surface requirements of the workpiece.
    Surface brushing to remove slag function
  • Belt automatic deviation correction function
    This equipment is equipped with a set of pneumatic deviation correction system, without manual intervention, the abrasive belt can find the swinging action point in a very short time, so that the abrasive belt does not deviate, so that the parts will not deviate during processing.
High temperature wear-resistant and anti-damping conveyor belt
The equipment is equipped with a high-damping and wear-resistant conveyor belt. The conveyor structure and conveyor belt are designed for easy maintenance and replacement; the conveyor belt passes through high temperature during use, which can effectively absorb workpieces and increase the service life of the conveyor belt.deburring machine factory in china
Technical parameter:

  • Grinding max width:600mm,800mm,1000mm,1300mm,1500mm,1600mm
  • Grinding sheet thickness:0.5-80mm
  • Belt grinding motor:7.5kw ;hairline brush grinding motor:5.5kw;conveyor motor:1.5kw;lift motor:0.37kw
  • Controller:PLC
  • Adsorption optional: Vacuum ,Magnetic
Max deburring width:600mm,800mm,1000mm,1300mm,1500mm,1600mm
• Grinding sheet thickness:0.5-80mm
• Belt grinding motor:7.5kw ;
• Brush grinding motor:5.5kw;
• Conveyor motor:1.5kw;
• Lift motor:0.37kw
• Adsorption optional: Vacuum ,Magnetic
• Controller:PLC


What industry deburring machine will be used?

Deburring machine is solution for metal parts surface finishing,
Application for laser cut,punch cut,water jet cut,plasma cut,flame cut.
metal fabrication,sheet metalling industry.


What deburring machine can do?

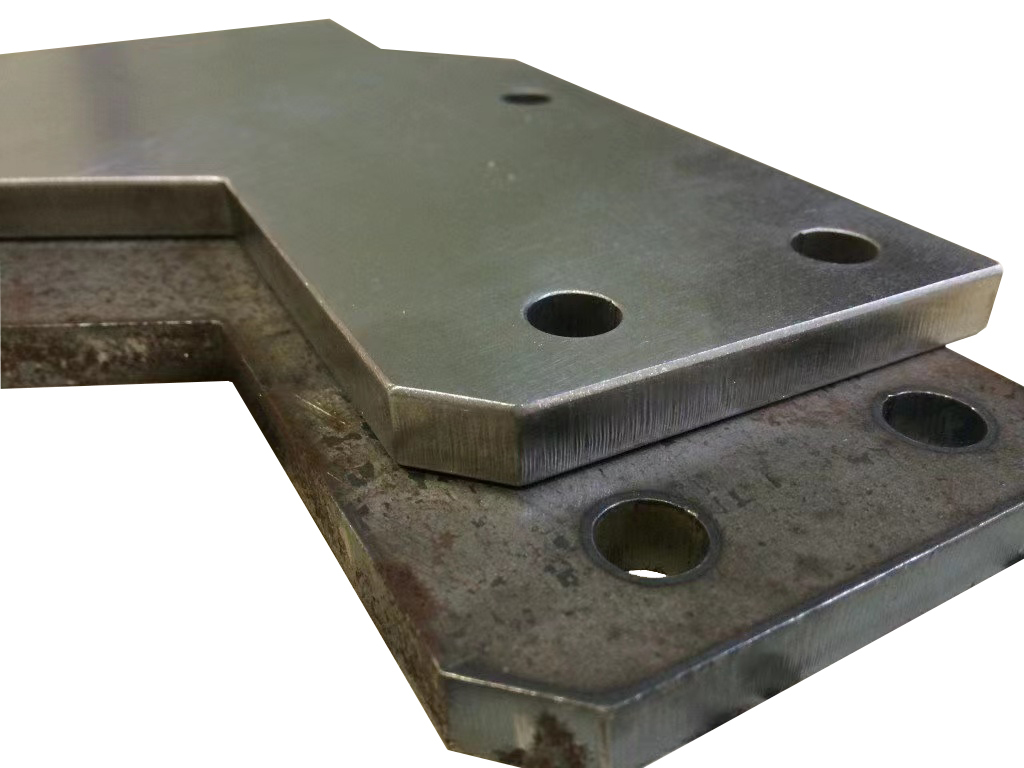

Metal surface deburrs removal,edge rounding,polishing,scratch removal.
polishing,hairline polishing,rust removal,oxide layer removal.
Widely used for stainless steel,aluminum,iron,steel,copper surface finishing jobs.
  • Abrasive belt
     Sanding belts for deburring of sheet burrs after laser cut

  • Rotary brush
     Universal brush roller is for edge rounding  to R 0.8mm

  • Hammer head-large slag
     Special tools for carbon steel large slag.

  • Polishing wheel-hairline
     For  hairline polishing surface purpose.
